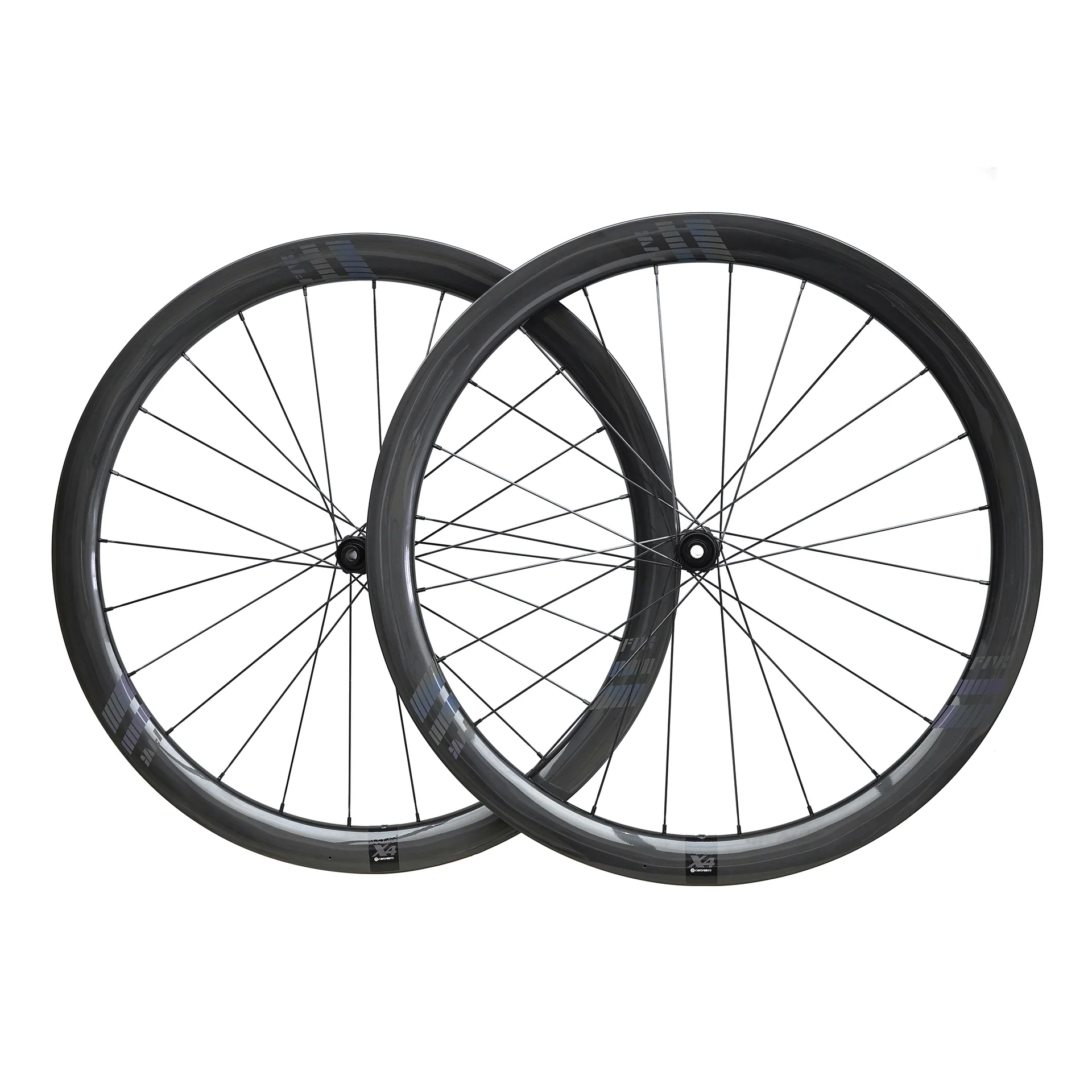

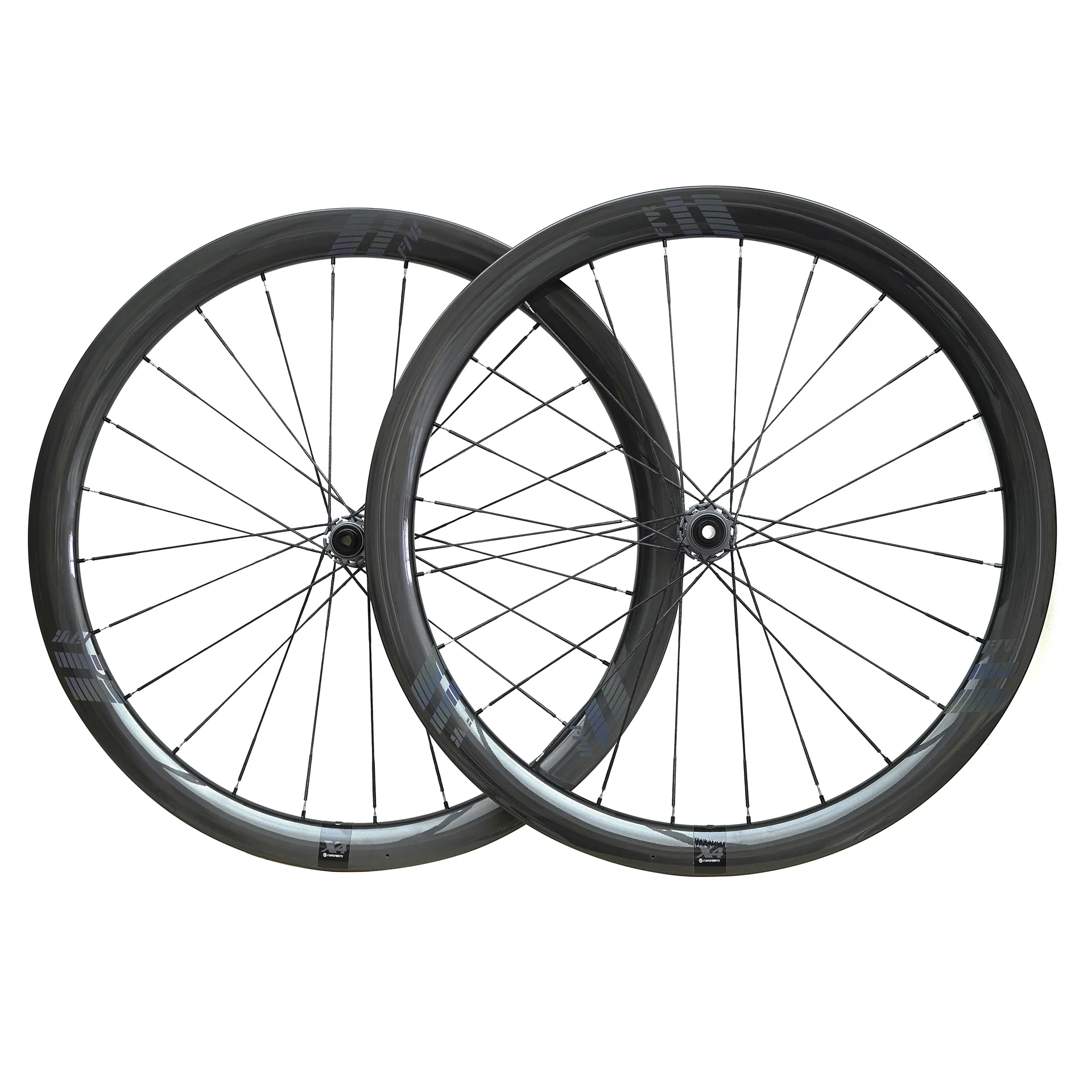

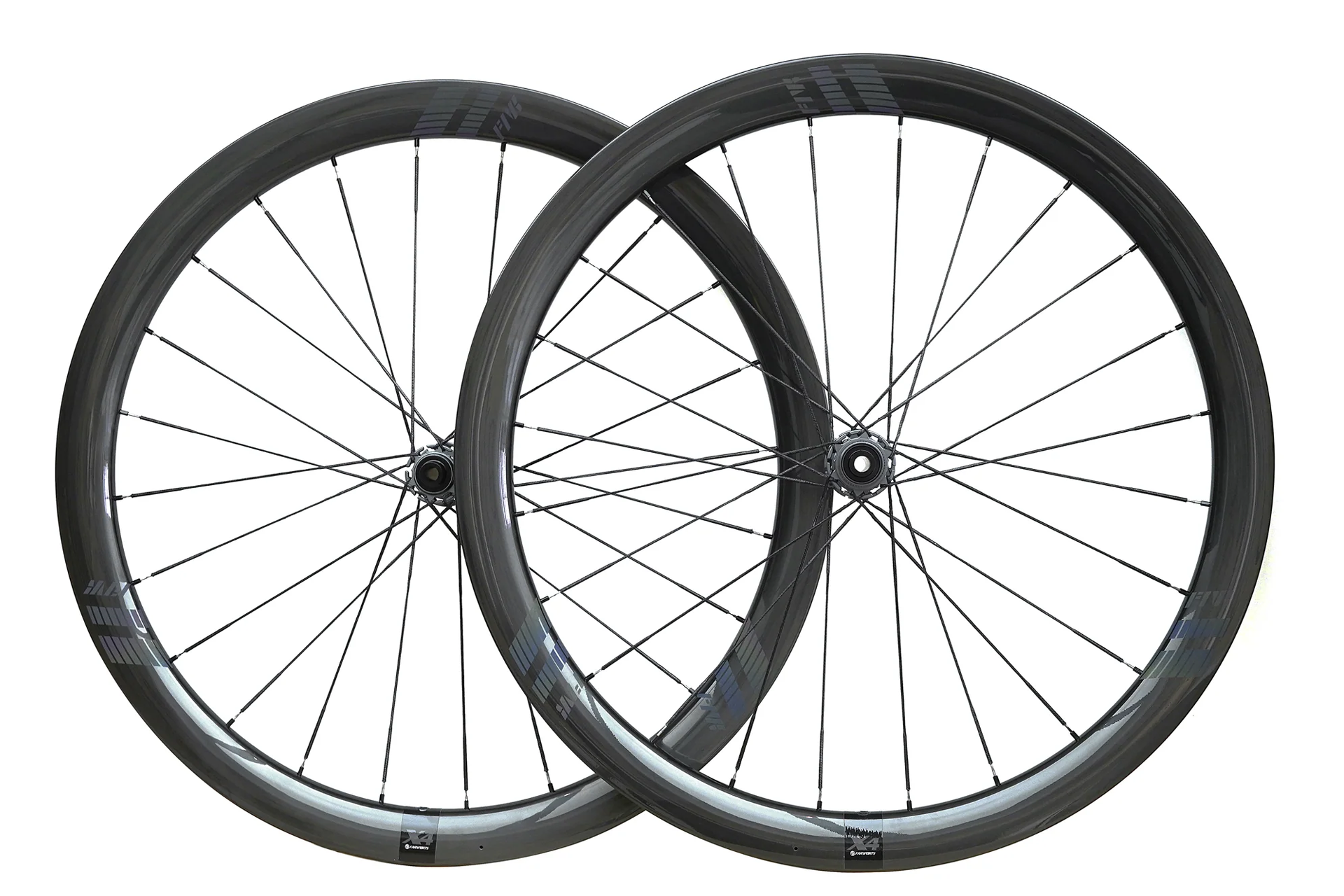

FARSPORTS GRAVEL X WHEELSET

FARSPORTS GRAVEL X WHEELSET

A lightweight, wide-profile carbon wheel platform developed specifically for modern gravel riding.

The Farsports Gravel X Series combines wide tubeless-ready carbon rims with a choice of two rim depths and two spoke platforms. From the exceptionally light Berd polymer-spoke versions to the proven Sapim CX-Ray configurations, the range is designed to balance low weight, strength, tyre support and efficient power transfer across mixed terrain.

With X3 30mm and X4 45mm rim profiles available, Gravel X allows riders to choose between maximum versatility and low weight or a deeper, more aerodynamic gravel setup.

GRAVEL X HIGHLIGHTS

• X3 30mm and X4 45mm carbon rim platforms
• Wide gravel-specific rim profiles
• Tubeless-ready hook rim design
• Choice of Berd polymer or Sapim CX-Ray spoke configurations
• 24-spoke front and rear, 1:1 lacing
• Farsports ratchet-system hubs
• Centre Lock disc brake interface
• Shimano HG and SRAM XDR freehub options
• Claimed wheelset weights from approximately 1190g

TWO RIM PROFILES

X3 – 30mm

The shallower and wider option in the Gravel X family.

• 30mm rim depth
• 38mm external width
• 30mm internal width

Its exceptionally wide internal profile is designed around modern high-volume gravel tyres, while the shallower construction keeps weight extremely low.

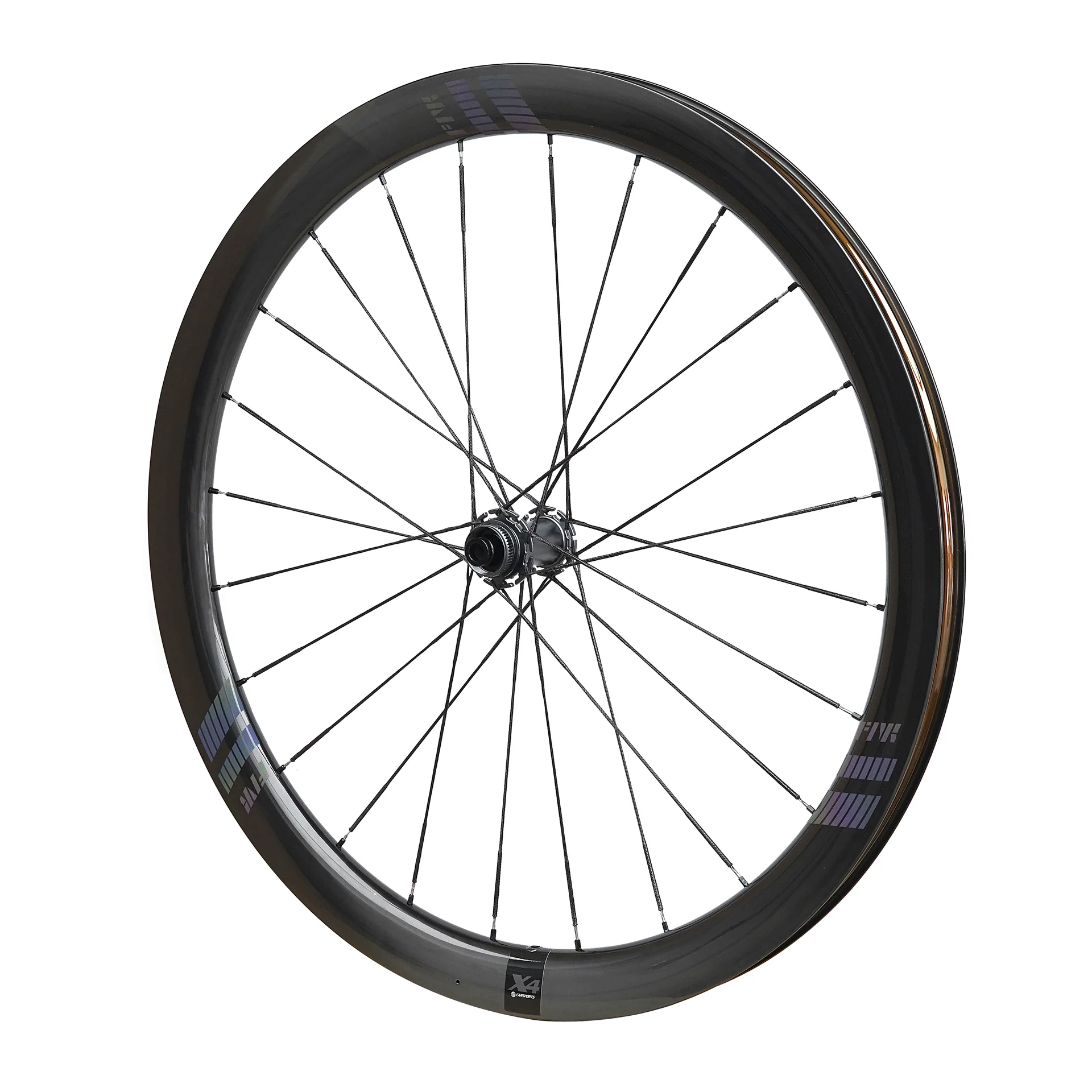

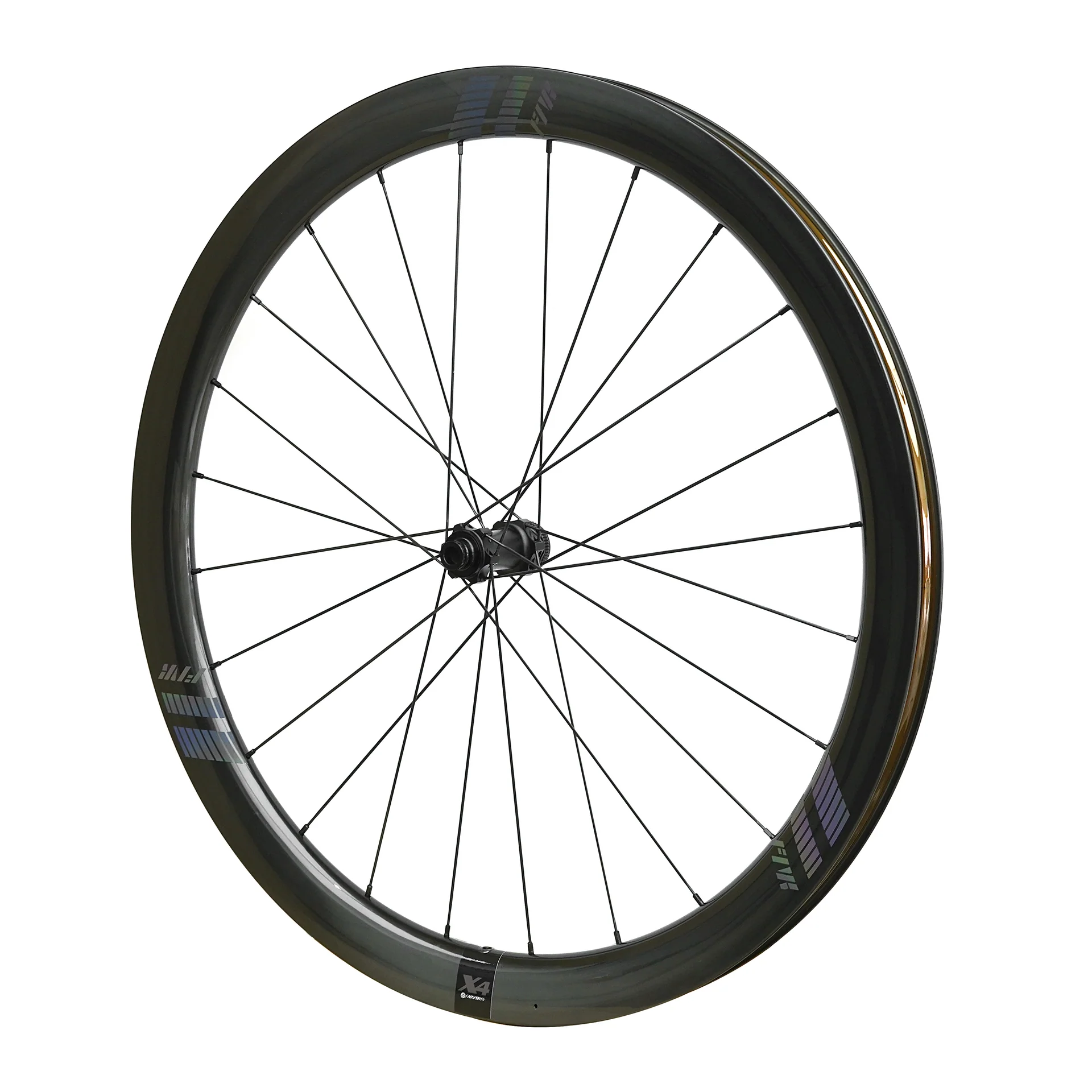

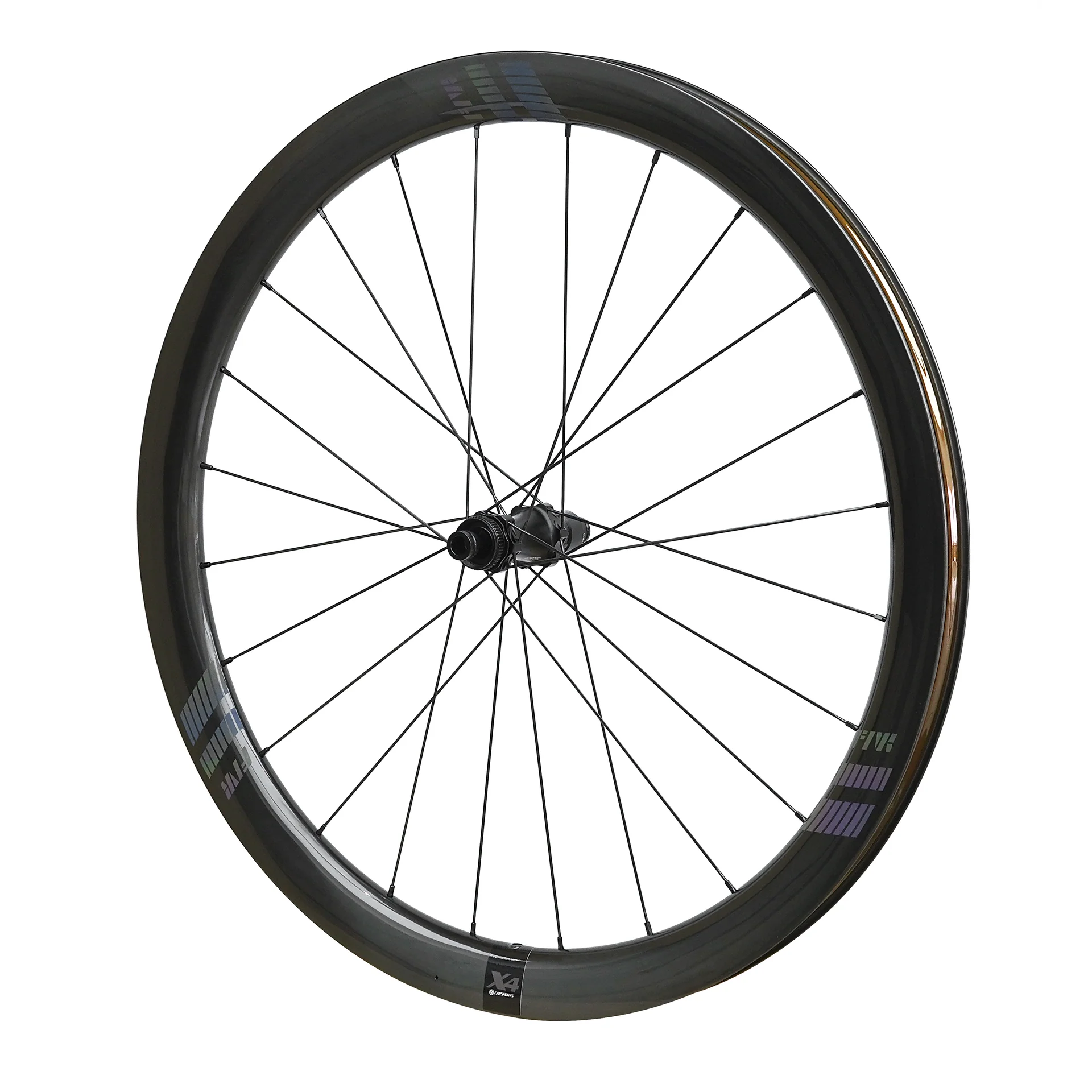

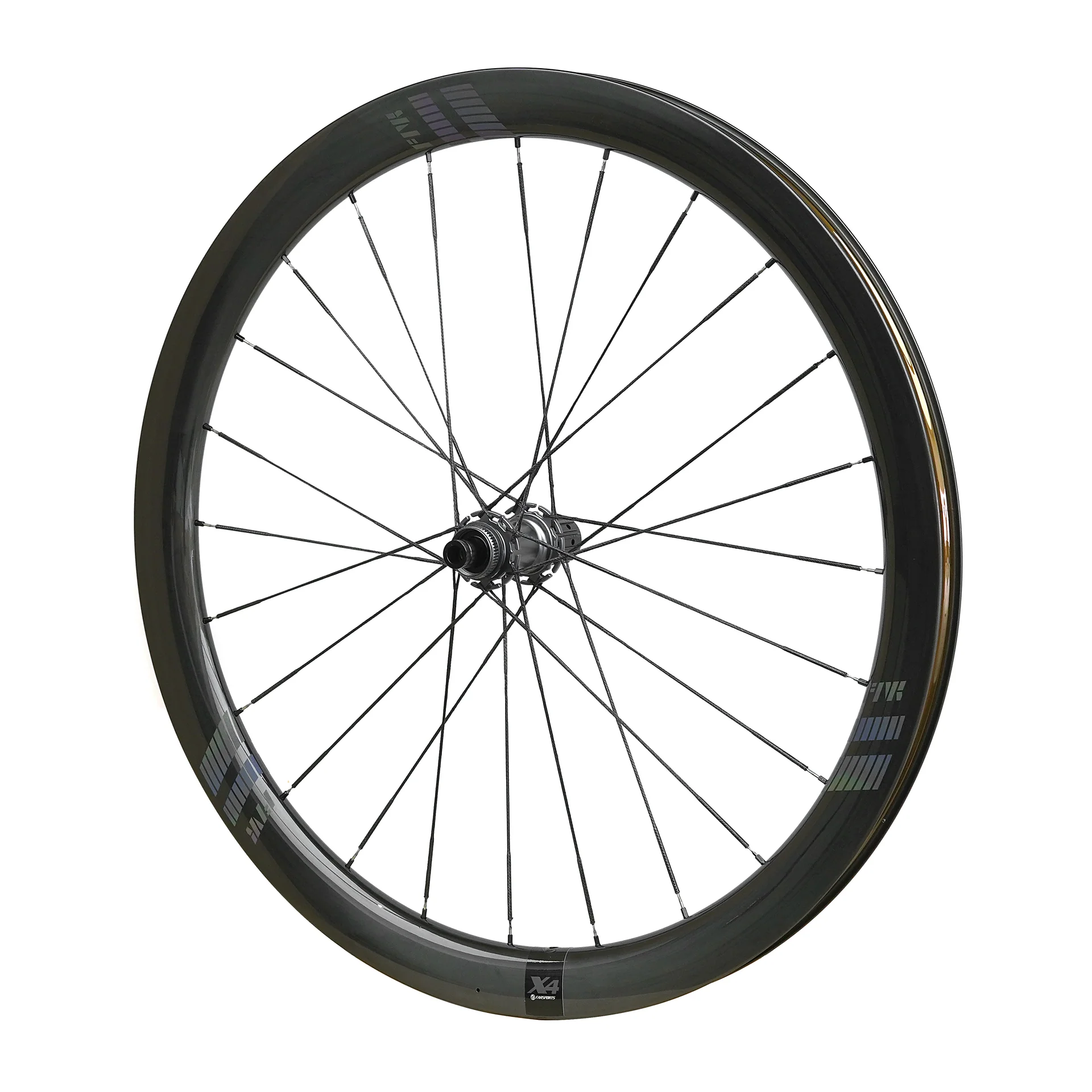

X4 – 45mm

A deeper gravel wheel for riders looking to combine off-road capability with a more aerodynamic profile.

• 45mm rim depth
• 34mm external width
• 28mm internal width

The X4 retains a generous gravel-specific internal width while introducing a deeper 45mm carbon rim for riders looking for greater aerodynamic performance.

CHOOSE YOUR GRAVEL X

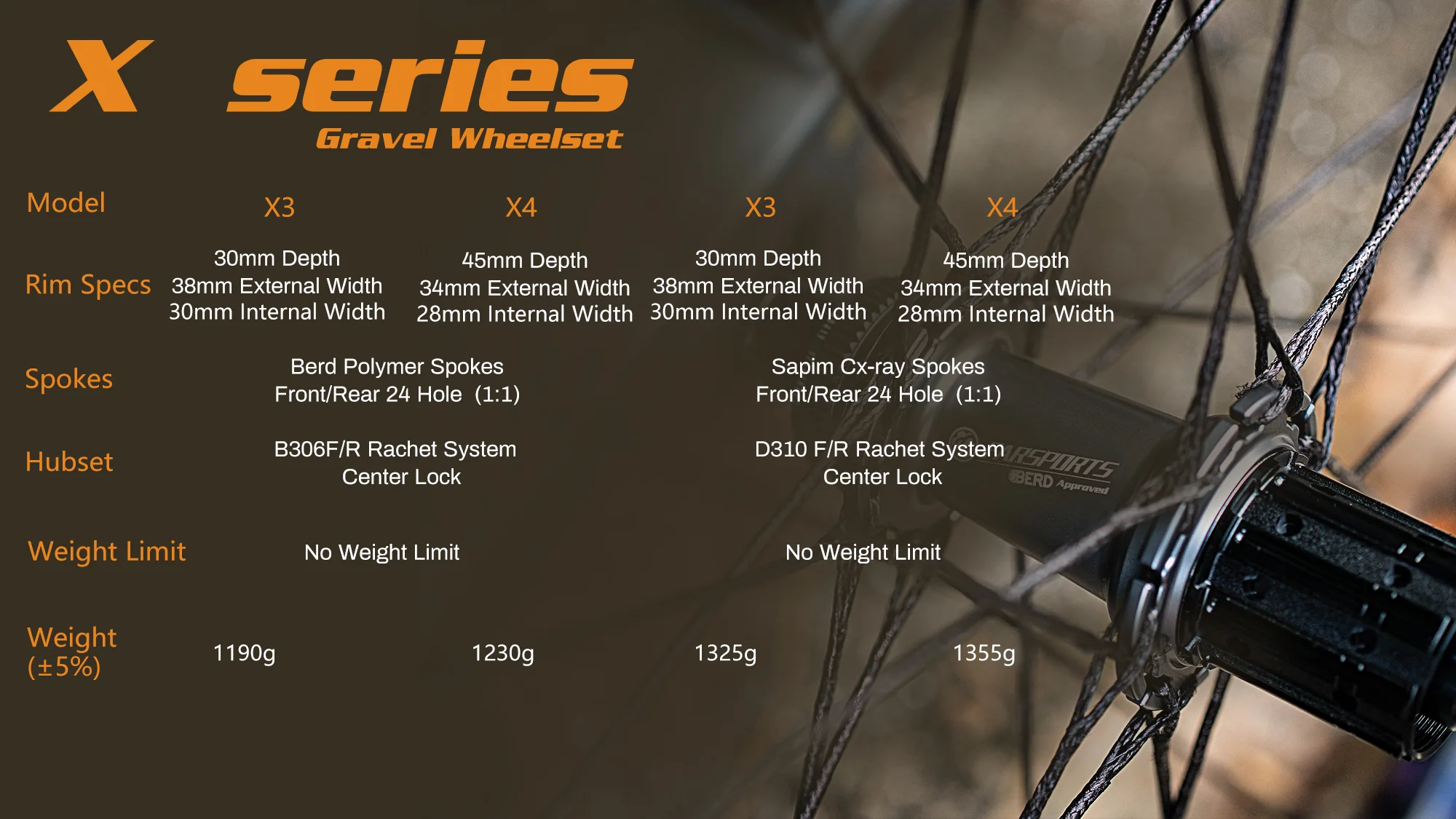

The Gravel X platform is available in four principal configurations:

X3 – Berd Polymer Spokes

• 30mm depth
• 38mm external / 30mm internal width
• Berd polymer spokes
• 24-hole front and rear, 1:1 lacing
• Farsports B306 front/rear ratchet-system hubs
• Centre Lock
• No stated rider weight limit
• Approx. 1190g ±5%

X4 – Berd Polymer Spokes

• 45mm depth
• 34mm external / 28mm internal width
• Berd polymer spokes
• 24-hole front and rear, 1:1 lacing
• Farsports B306 front/rear ratchet-system hubs
• Centre Lock
• No stated rider weight limit
• Approx. 1230g ±5%

X3 – Sapim CX-Ray Spokes

• 30mm depth
• 38mm external / 30mm internal width
• Sapim CX-Ray spokes
• 24-hole front and rear, 1:1 lacing
• Farsports D310 front/rear ratchet-system hubs
• Centre Lock
• No stated rider weight limit
• Approx. 1325g ±5%

X4 – Sapim CX-Ray Spokes

• 45mm depth
• 34mm external / 28mm internal width
• Sapim CX-Ray spokes
• 24-hole front and rear, 1:1 lacing
• Farsports D310 front/rear ratchet-system hubs
• Centre Lock
• No stated rider weight limit
• Approx. 1355g ±5%

BUILT FOR MODERN GRAVEL

Gravel X isn’t simply a road wheel made wider.

The generous internal rim widths are designed around the larger-volume tyres now commonly used for gravel riding, providing a broad tyre profile and creating a platform suited to fast gravel, mixed-surface riding and demanding off-road use.

The X3 prioritises low weight and maximum tyre volume, while the deeper X4 introduces a stronger aerodynamic element for faster gravel riding and racing.

BERD OR SAPIM CX-RAY

Farsports offers two distinctly different approaches within the Gravel X family.

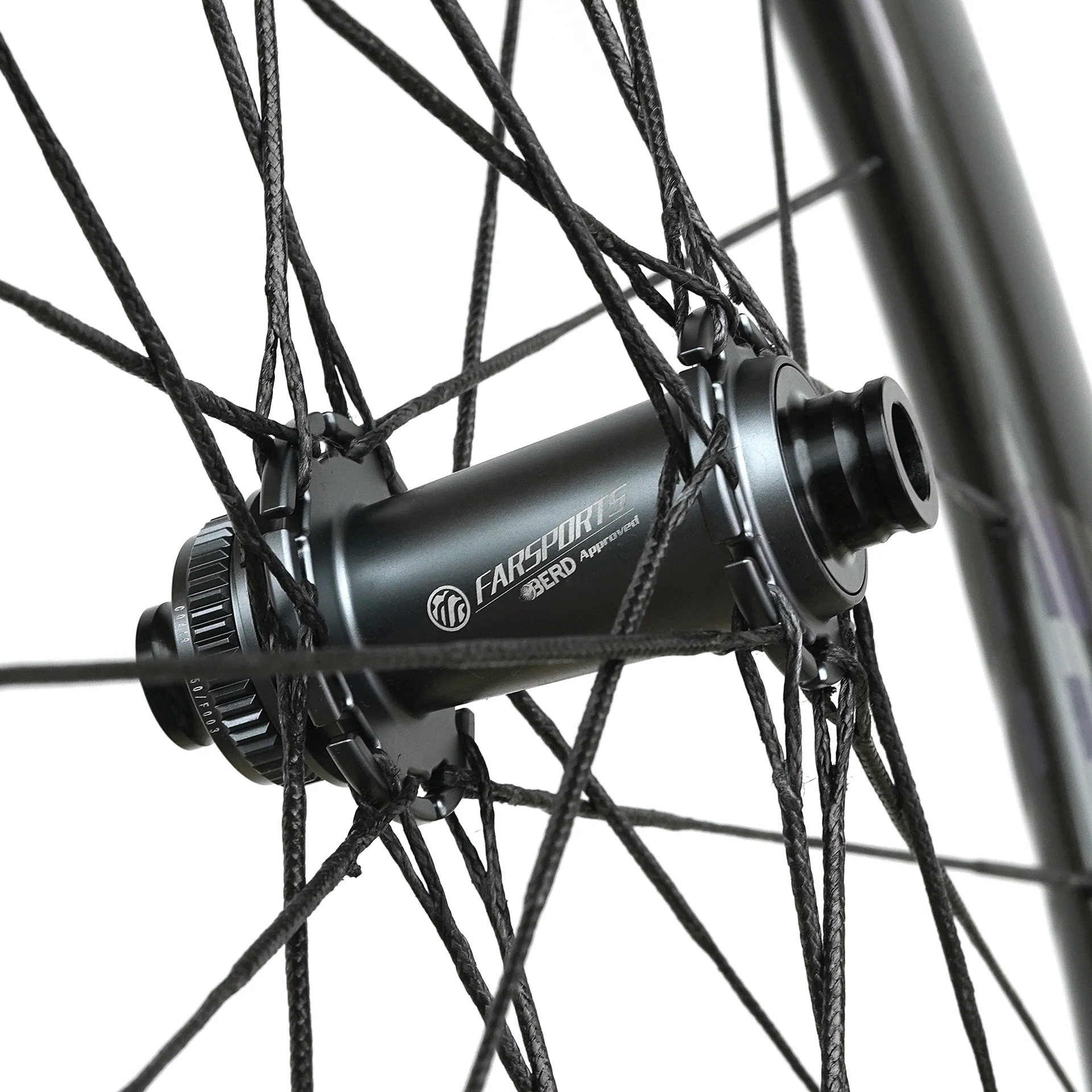

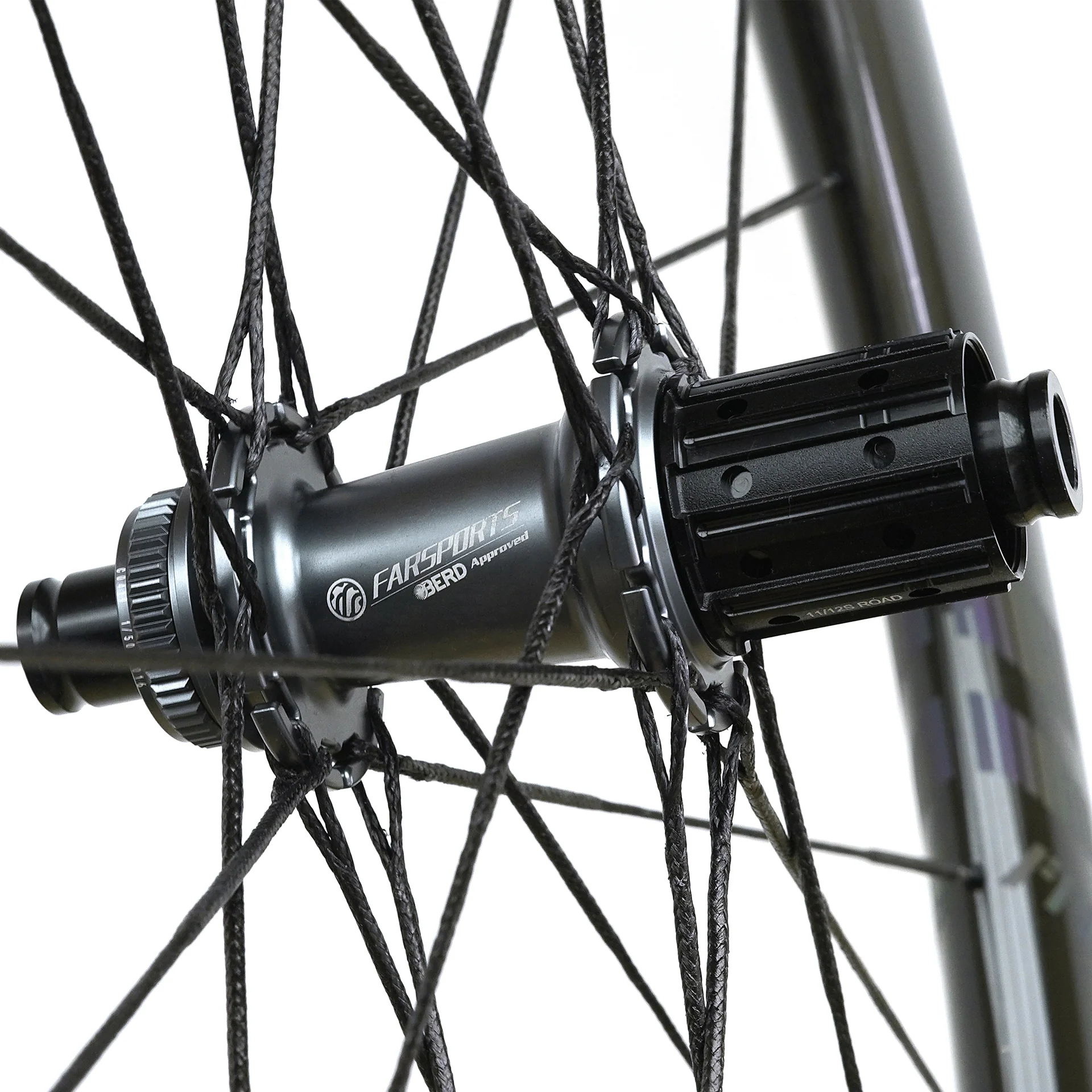

The Berd polymer-spoke versions are the lightest Gravel X configurations, with claimed wheelset weights of approximately 1190g for X3 and 1230g for X4. They use Farsports B306 ratchet-system hubs.

The Sapim CX-Ray versions use the established CX-Ray spoke platform with Farsports D310 ratchet-system hubs, with claimed weights of approximately 1325g for X3 and 1355g for X4.

This gives riders the ability to choose the Gravel X configuration that best suits their priorities rather than treating the range as a single fixed wheelset.

SUPPORTED HERE IN THE UK

Supplied by Coventry Bespoke Cycles with UK-based product and technical support before and after purchase.

Not sure which Gravel X specification, freehub or rim depth is right for your bike and riding? Speak to us before ordering and we’ll help you choose the appropriate configuration.

We also hold genuine Farsports service components and specialist tooling to support Farsports wheels properly here in the UK.

WARRANTY, SPARES & UK SUPPORT

Coventry Bespoke Cycles provides UK-based support for Farsports wheels, including servicing, replacement parts and technical assistance.

Manufacturer Warranty
The Gravel X Series is covered by the Farsports 36-month manufacturer warranty for the original owner.

Crash Replacement
If the wheel is damaged in a crash or accident, it may be eligible for the Farsports Crash Replacement Program, which provides a one-time 35% discount on an approved replacement carbon product.

UK servicing and support
Coventry Bespoke Cycles holds selected Farsports service components and specialist tooling in the UK. Our experienced wheel builders can handle servicing, spoke replacement, rim replacement, freehub changes and wheel rebuilding where required.

Direct technical support from Farsports is also available when needed.

Manufacturer Warranty
Crash Replacement Program
UK Spares & Technical Support
