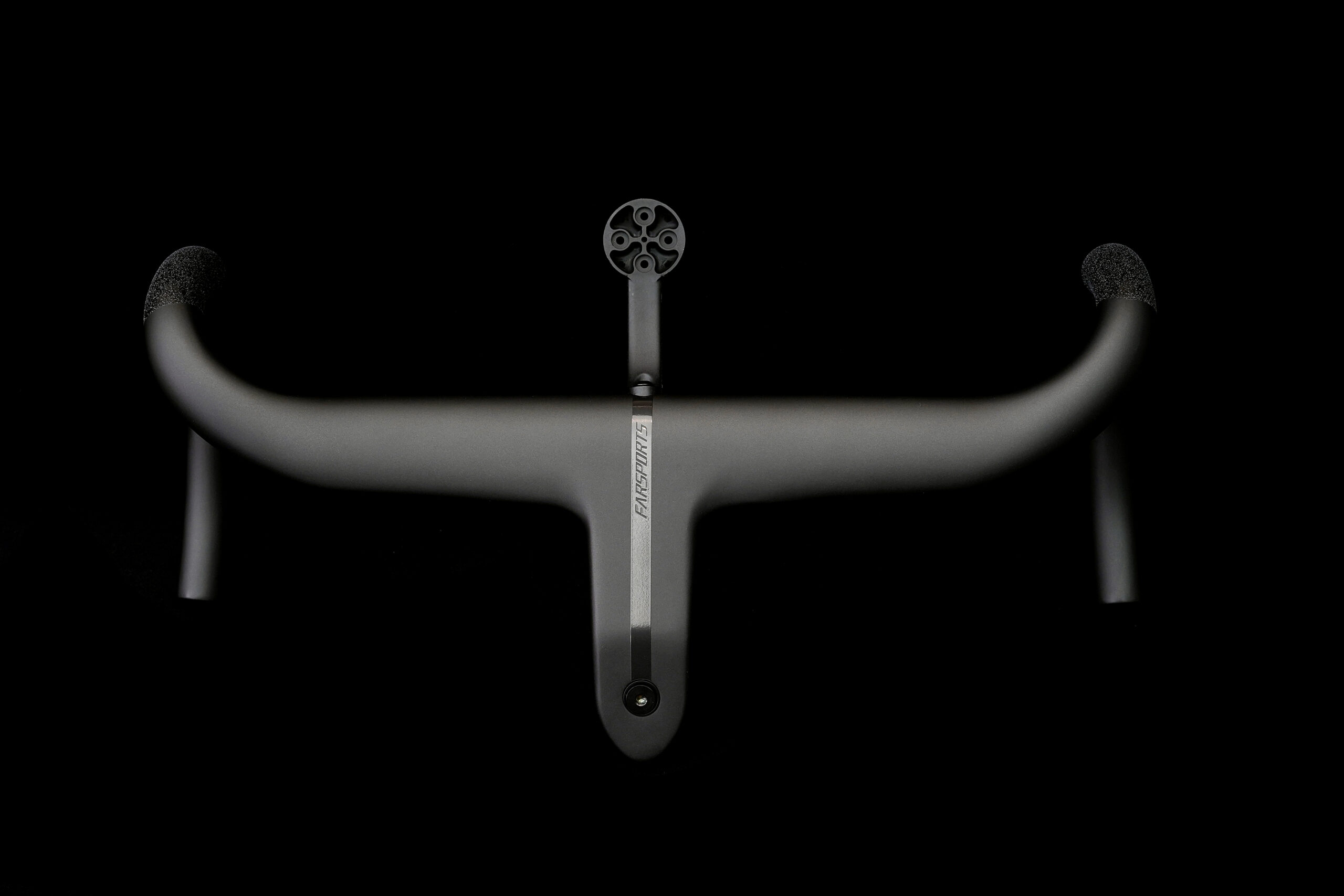

FARSPORTS F1 ULTIMATE CARBON INTEGRATED HANDLEBAR

FARSPORTS F1 ULTIMATE

Ultra-light full-carbon integrated cockpit for modern performance road bikes.

The Farsports F1 Ultimate combines an ultra-light full-carbon integrated structure with clean internal cable routing and a refined aerodynamic profile.

Designed around modern race-bike fit, aerodynamics and integration, the F1 Ultimate brings the handlebar and stem together into a highly refined cockpit, with a manufacturer-claimed bare weight of approximately 257g in a 390mm × 100mm configuration.

F1 ULTIMATE HIGHLIGHTS

• Full-carbon integrated handlebar and stem
• Approximately 257g bare weight in 390mm × 100mm configuration
• 11% reduction in frontal area according to Farsports’ comparative testing
• 7% improvement in stiffness-to-weight according to Farsports
• 75mm reach / 127mm drop
• 30mm drop-bar flare
• -10° stem angle
• Stem-cap-free integrated design
• Fully internal cable routing
• Garmin, Wahoo and Bryton computer mounting fittings included
• GoPro camera mount included
• Standard FSA SMR spacer kit included
• Steerer shim for 1-1/4in to 1-1/8in adaptation included
• Frame-specific adapter kits available separately
• Manufacturer-stated EN ISO 4210-2:2015 testing

ULTRA-LIGHT BY DESIGN

The F1 Ultimate has been developed around reducing weight and unnecessary hardware at the front of the bike while retaining the rigidity required from a performance cockpit.

Its stem-cap-free architecture contributes to a clean integrated appearance, while the full-carbon construction allows Farsports to quote a bare weight of approximately 257g for the 390mm × 100mm configuration.

The manufacturer’s technical specifications also provide an installed-weight reference of approximately 295g for a 370mm × 100mm configuration on a Giant Propel ADV. Actual installed weight will depend on the cockpit size, bicycle and installation hardware.

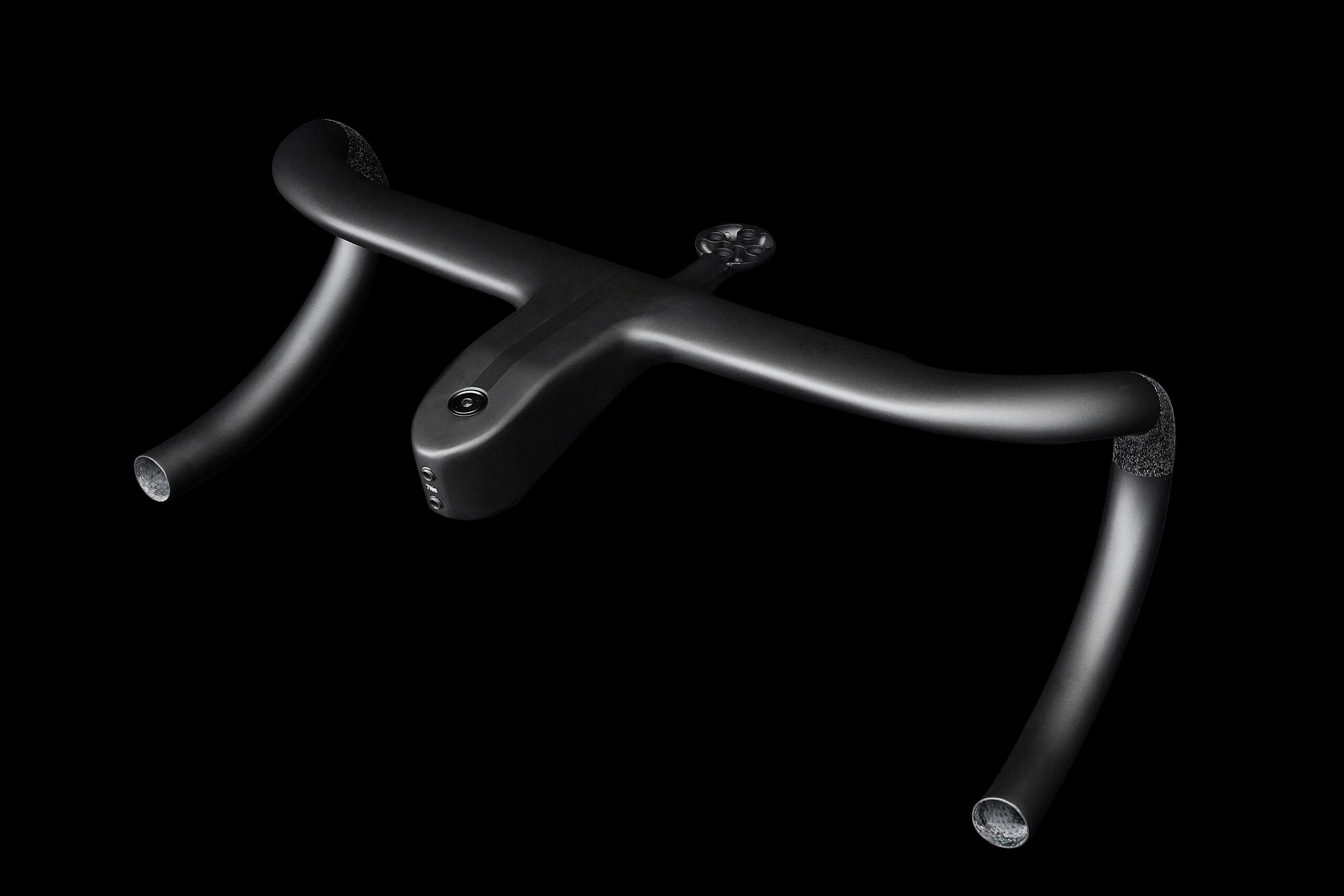

AERODYNAMICALLY REFINED

The F1 Ultimate uses a slimmer profile designed to reduce frontal area while maintaining structural performance.

According to Farsports’ comparative testing, the F1 Ultimate achieves an 11% reduction in frontal area alongside a 7% improvement in stiffness-to-weight.

Farsports positions this development as a way of improving aerodynamic efficiency without sacrificing the rigidity expected from a high-performance integrated cockpit.

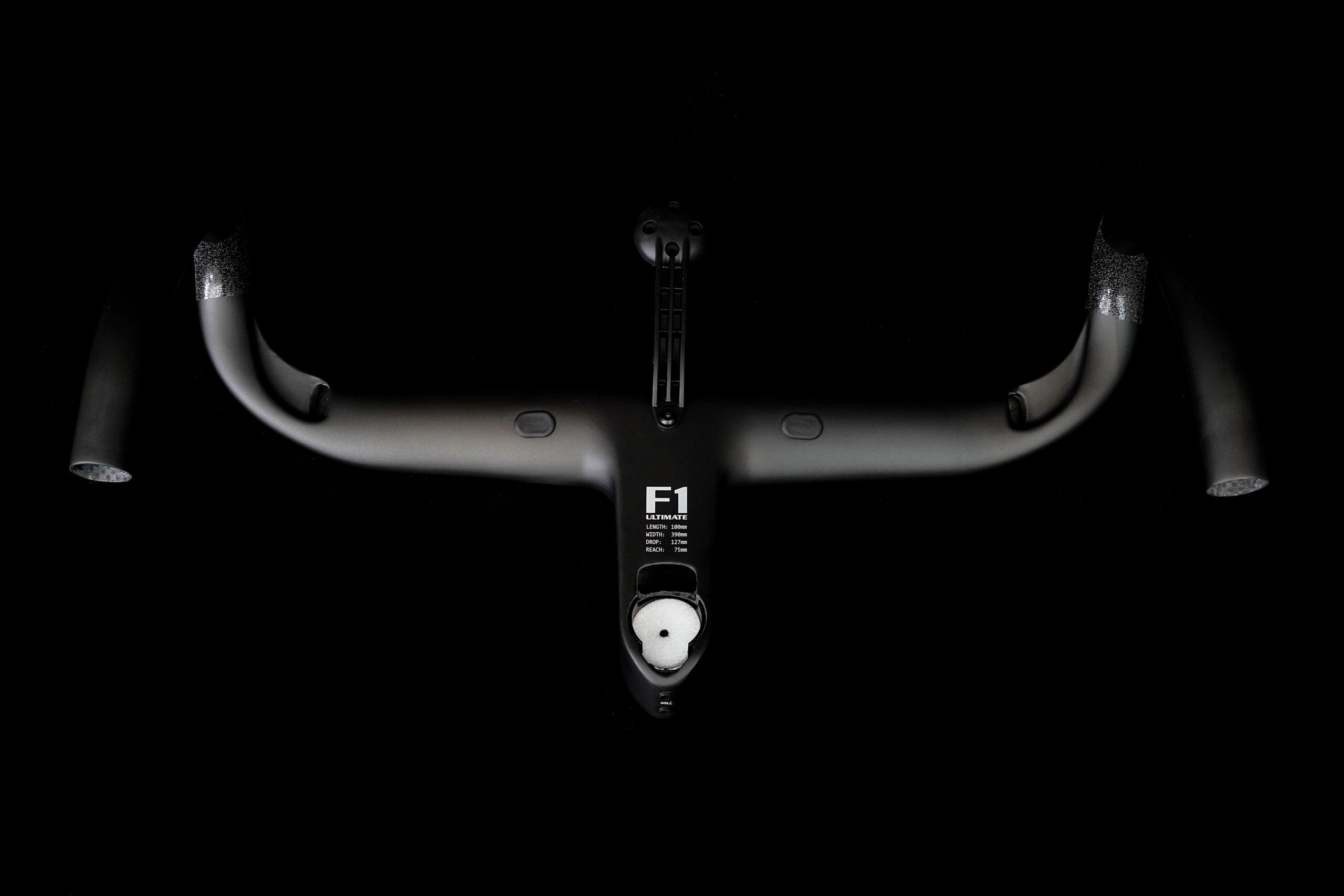

PURE INTEGRATION

The defining feature of the F1 Ultimate is the way its bar, stem, cable routing and accessory system have been developed as one integrated package.

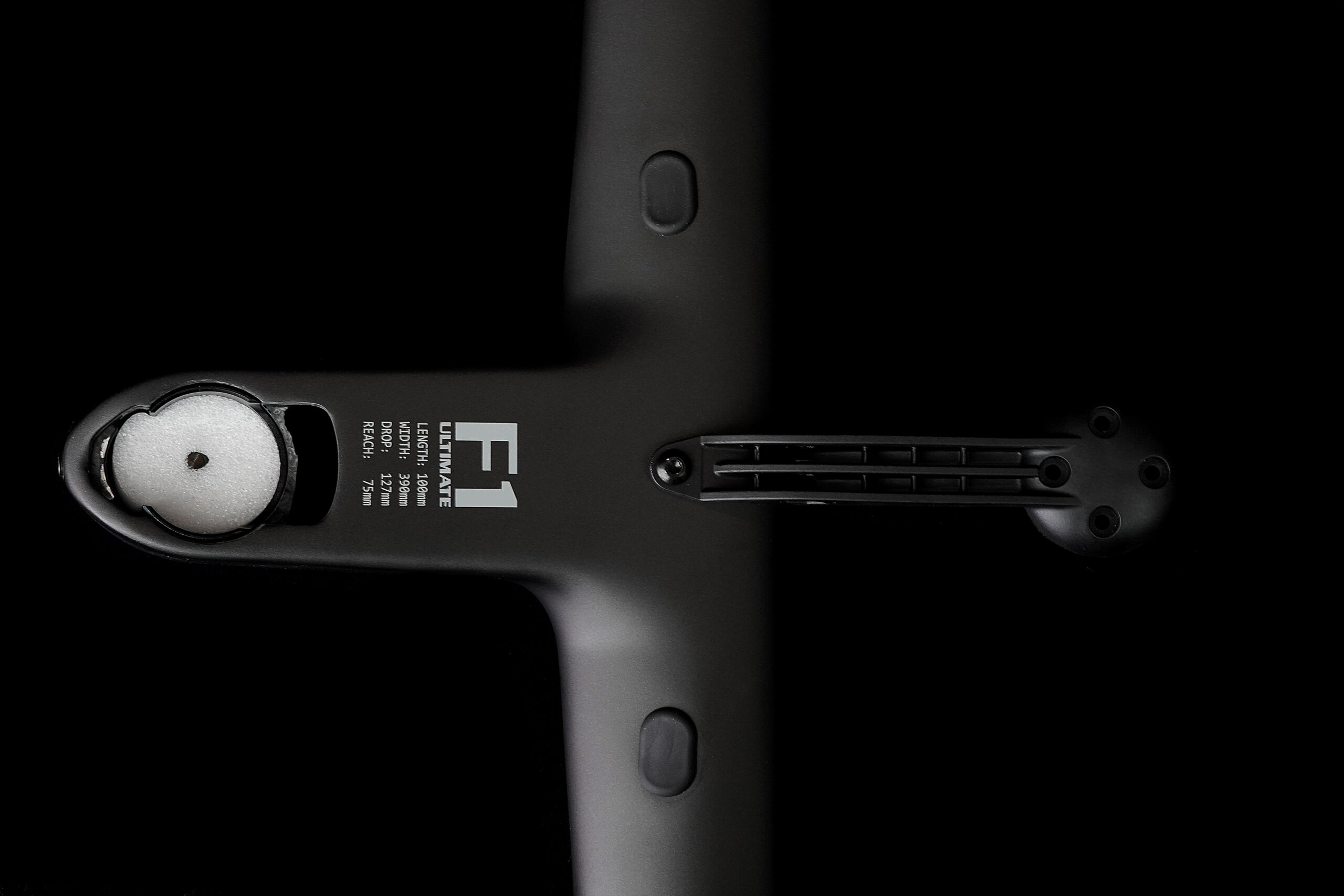

The stem-cap-free design creates a clean, minimal front end, while the cable-entry arrangement is designed for modern internally routed drivetrain installations.

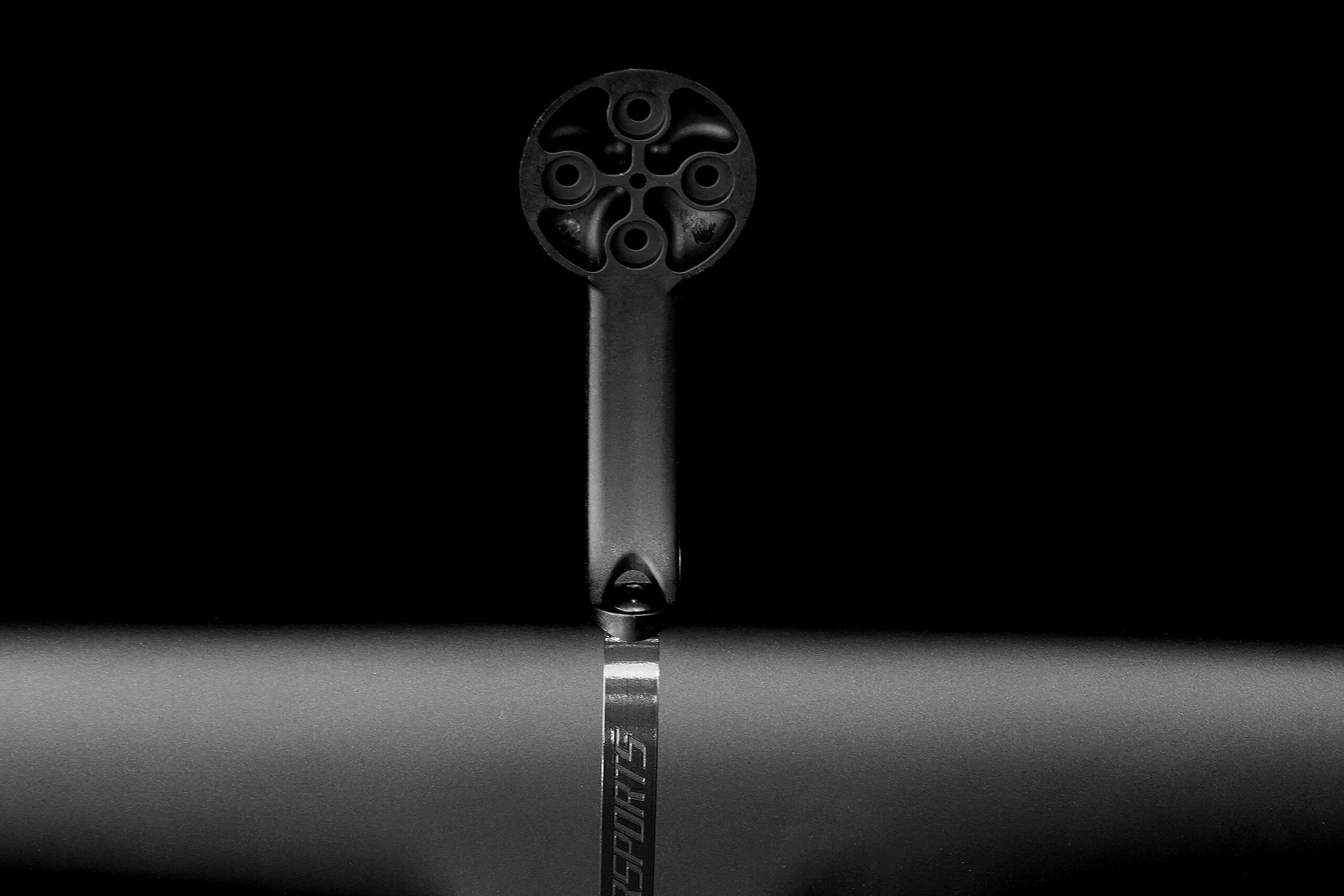

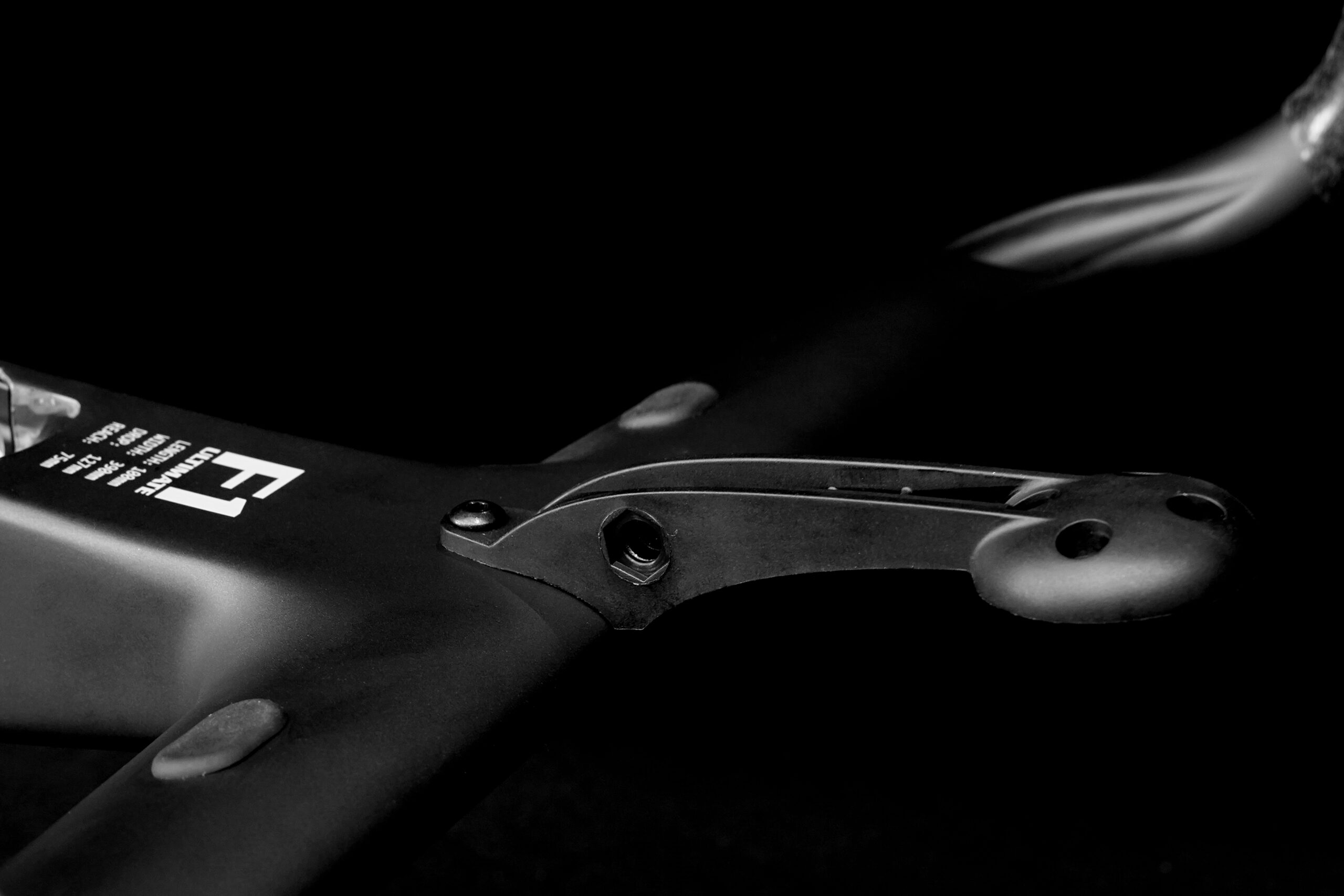

The cockpit is supplied with computer mounting fittings for Garmin, Wahoo and Bryton, together with a GoPro camera mount.

A standard FSA SMR spacer kit and a steerer shim for adapting between 1-1/4in and 1-1/8in steerer arrangements are also included.

Depending on the bicycle, additional frame-specific headset spacers or adapter components may be required.

BUILT AROUND MODERN FIT

The F1 Ultimate uses contemporary narrower bar dimensions while retaining additional width at the drops.

The drops extend outward by 30mm, creating a wider position for sprinting and descending while retaining a narrower position across the tops and hoods.

With a 75mm reach, 127mm drop and -10° stem angle, the F1 Ultimate offers a performance-focused cockpit geometry.

Please select your preferred handlebar width and stem length from the available product options.

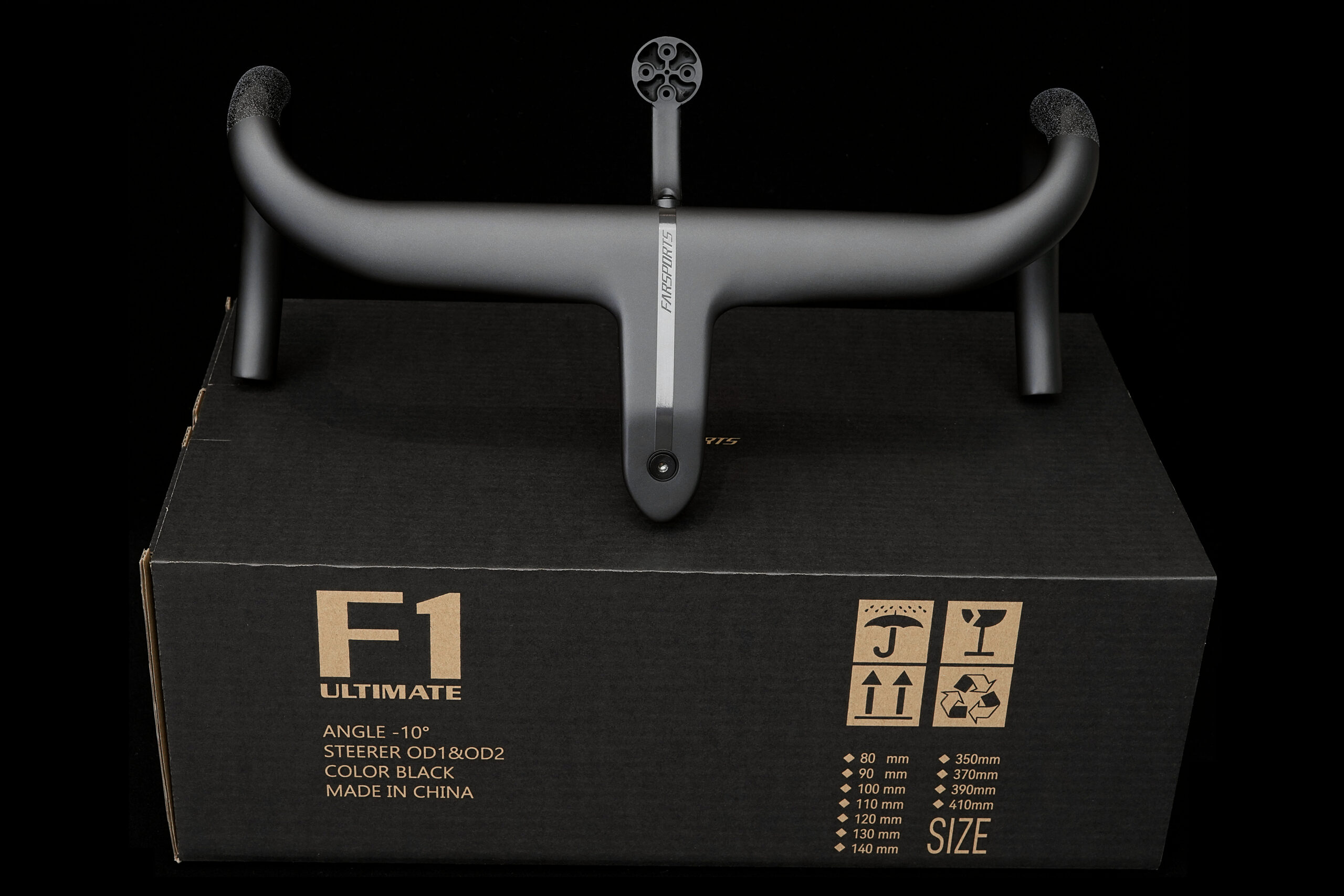

The manufacturer’s specification graphic illustrates the wider factory size range. Please refer to the selectable product options for the configurations currently offered by Coventry Bespoke Cycles.

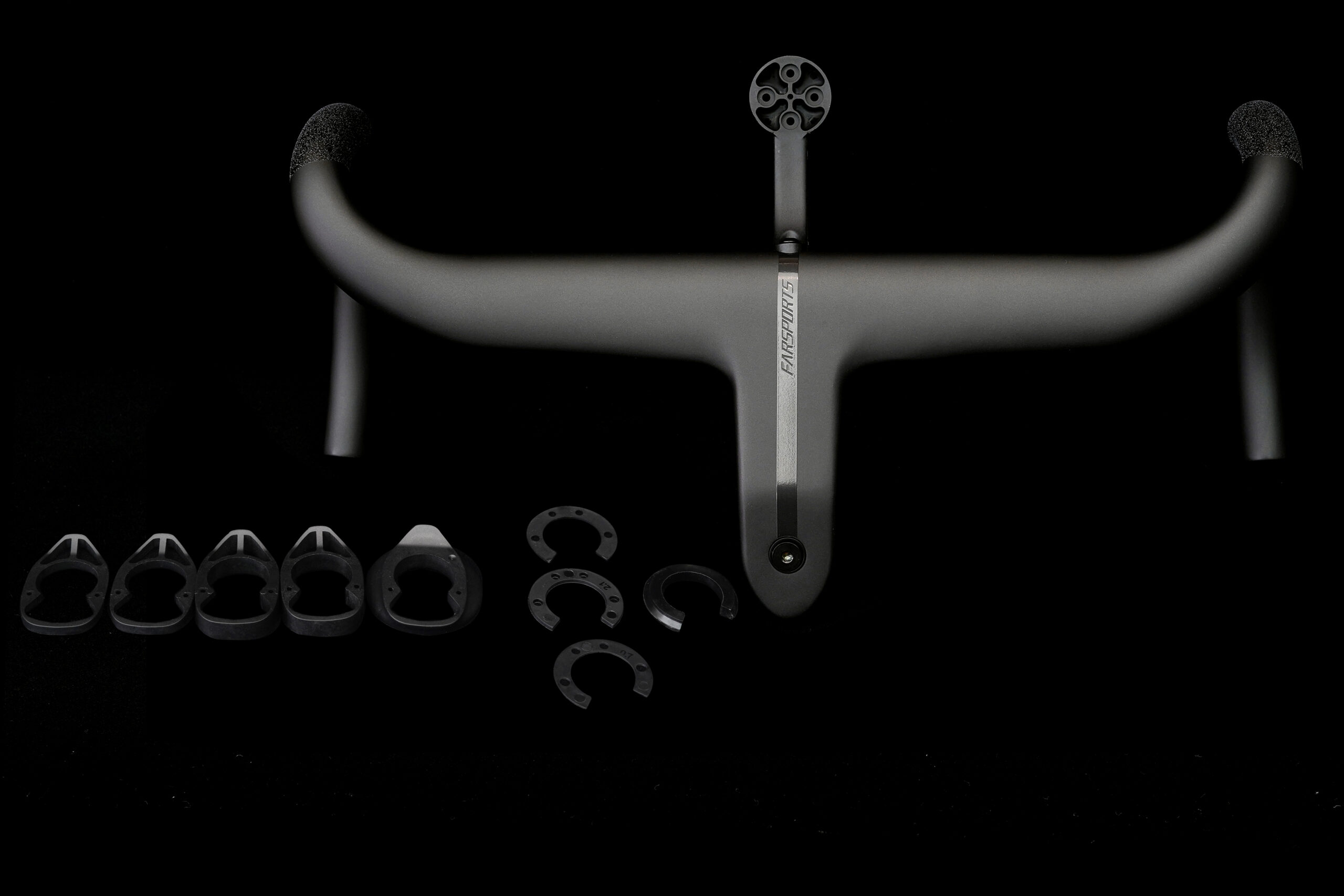

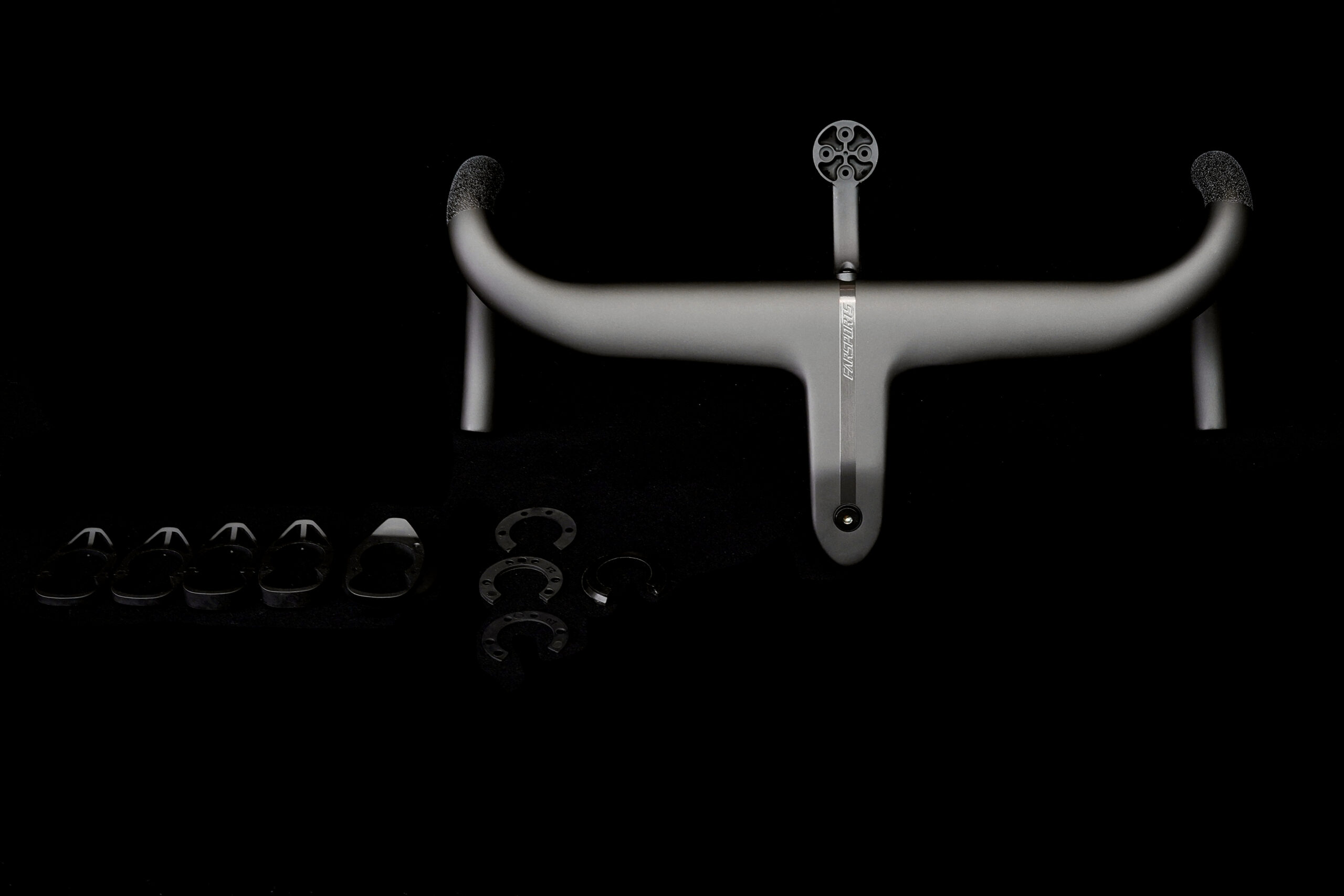

WHAT’S INCLUDED

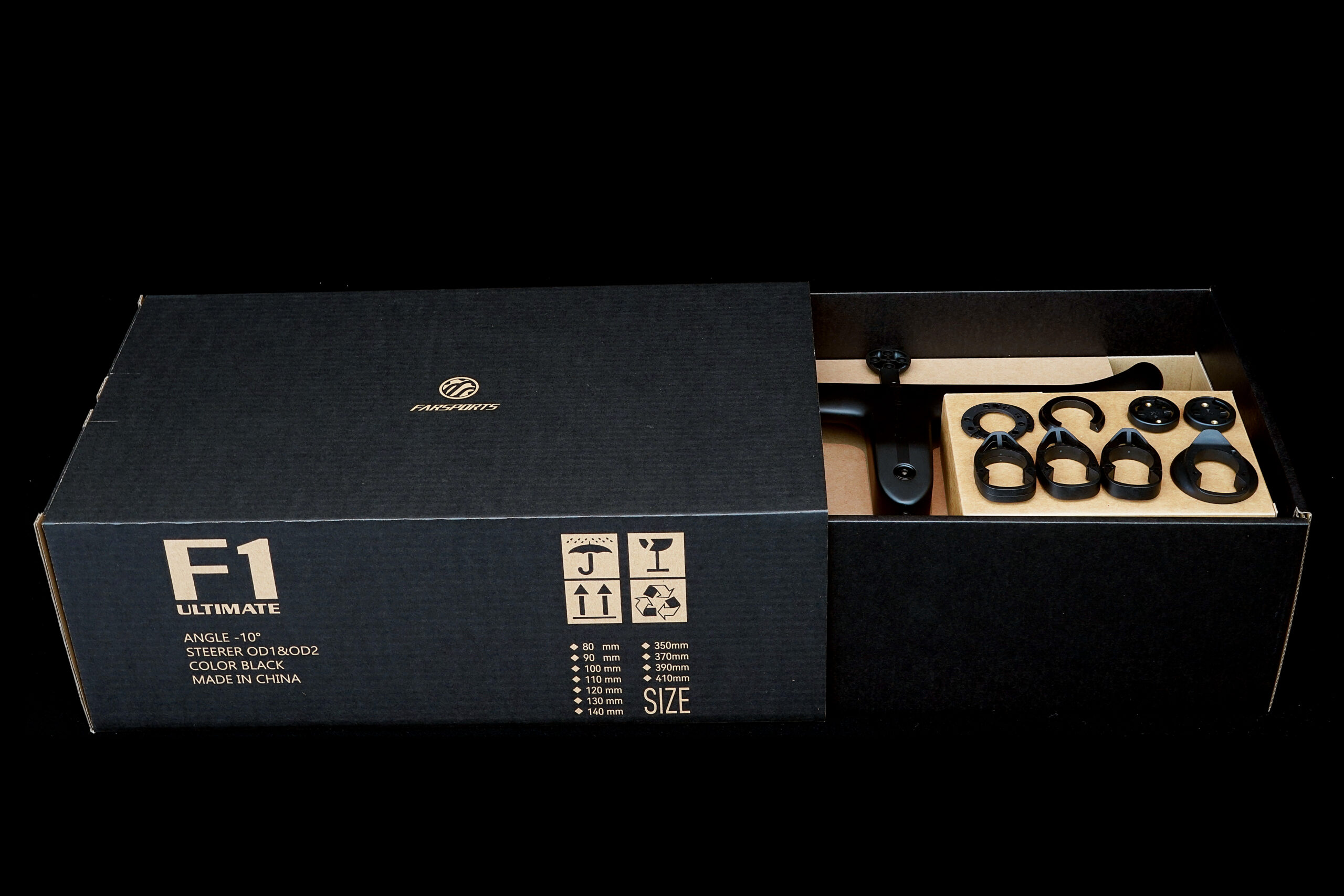

The F1 Ultimate is supplied with:

• F1 Ultimate integrated carbon handlebar and stem
• Garmin, Wahoo and Bryton computer mounting fittings
• GoPro camera mounting attachment
• Standard FSA SMR spacer kit
• Steerer shim for 1-1/4in to 1-1/8in adaptation

Frame-specific adapter kits are sold separately. Click here to View all available F1 Frame-Specific Adapter Kits.

The included standard components do not guarantee compatibility with every bicycle. Some frames require dedicated headset spacers or adapters to achieve the correct fit and internal cable routing.

FRAME-SPECIFIC ADAPTER KITS

The F1 Ultimate can be installed on a range of modern performance road bikes using the appropriate frame-specific adapter arrangement.

For bicycles requiring dedicated adapters, Coventry Bespoke Cycles offers a separate selection of F1 frame-specific adapter kits.

These kits are not included with the handlebar and must be purchased separately where required.

Click here to View all available F1 Frame-Specific Adapter Kits

COMPATIBILITY MATTERS

An integrated cockpit needs to suit both the rider and the bicycle.

The handlebar width and stem length must match the rider’s fit, while compatibility with the bicycle depends on its steerer, headset, spacer arrangement and internal cable routing.

The F1 Ultimate is designed to work with compatible modern internally routed performance bikes when the appropriate installation components are used.

If you are unsure whether the F1 Ultimate will fit your bike, speak to Coventry Bespoke Cycles before ordering. We can help identify the appropriate cockpit size and frame-specific adapter requirements.

if you require any assistance you can call us or contact us via our Contact Us form here.

SUPPORTED HERE IN THE UK

Supplied by Coventry Bespoke Cycles with UK-based support before and after purchase.

Not sure which handlebar width, stem length or adapter arrangement is right for your bike? Speak to us before ordering and we’ll help you identify the appropriate F1 Ultimate configuration.

We can also assist with genuine Farsports hardware, frame-specific adapter kits and installation-related components where available.

WARRANTY, SPARES & UK SUPPORT

Coventry Bespoke Cycles provides UK-based support for Farsports products, including replacement hardware, compatibility guidance and technical assistance.

Manufacturer Warranty

The F1 Ultimate is supported by the Farsports manufacturer warranty, subject to the manufacturer’s applicable terms and conditions.

Crash Replacement

If the handlebar is damaged in a crash or accident, it may be eligible for the Farsports Crash Replacement Program, subject to the manufacturer’s eligibility requirements.

UK Servicing and Support

Coventry Bespoke Cycles can assist with frame-specific adapter selection, replacement mounting hardware, computer mount compatibility and installation-related enquiries.

Where specialist assistance is required, we can liaise directly with Farsports.

Manufacturer Warranty

Crash Replacement Program

UK Spares & Technical Support
