FARSPORTS F1 ULTIMATE CARBON INTEGRATED HANDLEBAR (ADAPTER INCLUDED)

FARSPORTS F1 ULTIMATE

Ultra-light full-carbon integrated cockpit for modern performance road bikes.

The Farsports F1 Ultimate is the pinnacle of the F1 cockpit family, combining an ultra-light full-carbon integrated structure with clean internal cable routing and a wide choice of widths and stem lengths.

Designed around modern race-bike fit, aerodynamics and integration, the F1 Ultimate brings the handlebar and stem together into a highly refined cockpit with a claimed bare weight of approximately 257g in a 390mm × 100mm configuration.

F1 ULTIMATE HIGHLIGHTS

• Full-carbon integrated handlebar and stem
• Approximately 257g bare weight in 390mm × 100mm configuration
• Approximately 290g fully installed in the same configuration
• Four handlebar widths and seven stem lengths available
• 75mm reach / 127mm drop
• 30mm drop-bar flare
• -10° stem angle
• Stem-cap-free integrated design
• Fully internal cable routing
• Optimised cable entry for modern drivetrain installations
• Garmin / Wahoo compatible computer mount included
• 1-1/8in and 1-1/4in steerer compatibility using the appropriate hardware
• Designed for modern internally routed bikes using the appropriate frame-specific adapter
• Tested to EN ISO 4210-2:2015 according to Farsports

ULTRA-LIGHT BY DESIGN

The F1 Ultimate has been developed around reducing weight and unnecessary hardware at the front of the bike while retaining the rigidity required from a performance cockpit.

Its stem-cap-free architecture contributes to a particularly clean integrated appearance, while the full-carbon construction allows Farsports to quote a bare weight of approximately 257g for the 390mm × 100mm configuration.

With installation hardware, screws and the out-front computer mount fitted, Farsports quotes approximately 290g for the same size.

AERODYNAMICALLY REFINED

The F1 Ultimate uses a slimmer profile designed to reduce frontal area while maintaining structural performance.

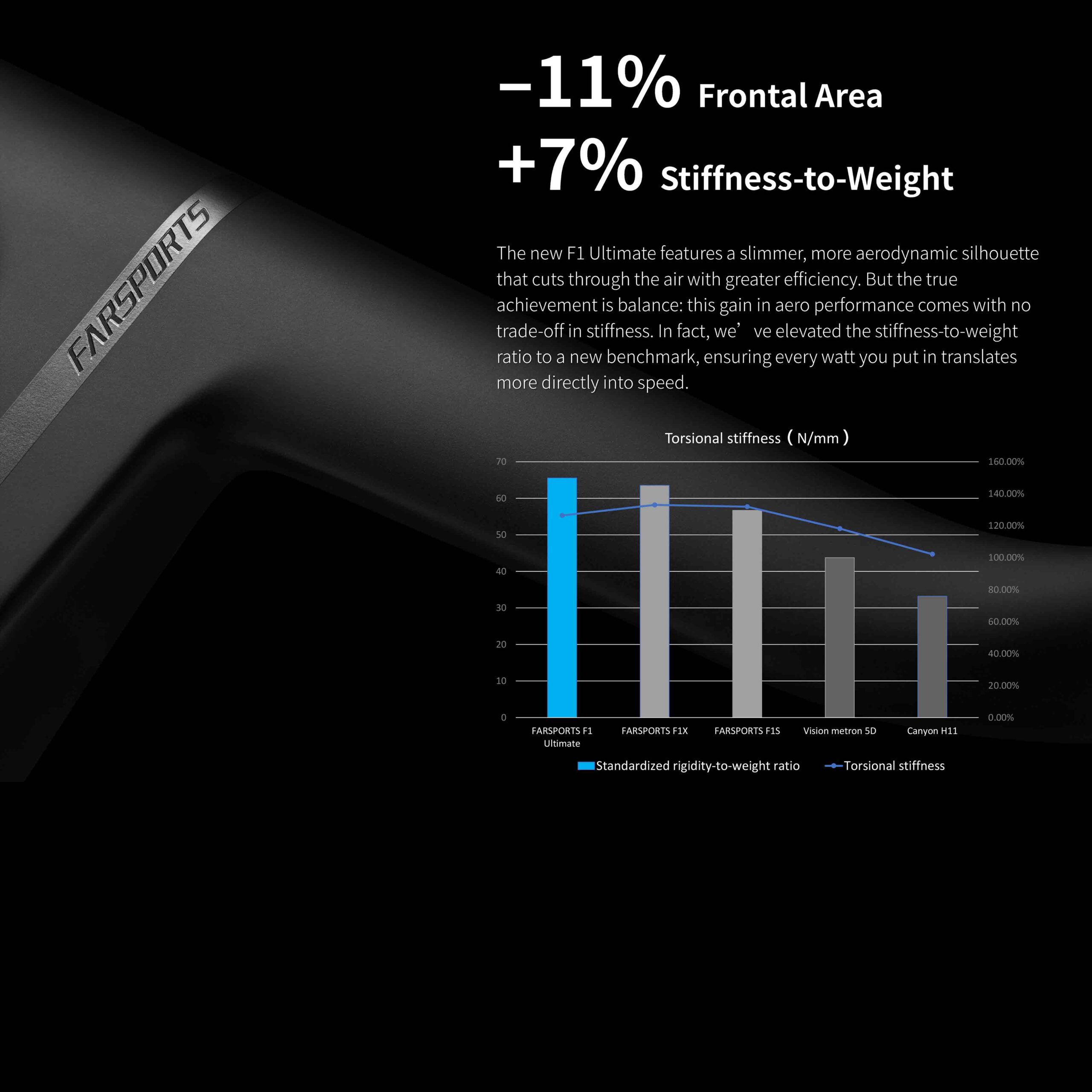

According to Farsports’ own comparative testing, the new F1 Ultimate achieves an 11% reduction in frontal areaalongside a 7% improvement in stiffness-to-weight.

Farsports positions this development as a way of improving aerodynamic efficiency without sacrificing the rigidity expected from a high-performance integrated cockpit.

PURE INTEGRATION

The defining feature of the F1 Ultimate is the way its bar, stem, cable routing and accessory system have been developed as one integrated package.

The stem-cap-free design creates a clean, minimal front end, while the revised cable-entry system is designed to provide a cleaner internal routing path for modern electronic drivetrain installations.

A dedicated lightweight computer mount is included and is compatible with Garmin and Wahoo head units.

BUILT AROUND MODERN FIT

The F1 Ultimate uses contemporary narrower bar dimensions while retaining additional width at the drops.

The drops extend outward by 30mm, creating a wider position for sprinting and descending while retaining a narrower position across the tops and hoods.

Seven stem lengths combined with four handlebar widths allow the cockpit to be matched closely to rider fit and frame geometry.

CHOOSE YOUR F1 ULTIMATE

Handlebar Width

350mm
370mm
390mm
410mm

Stem Length

80mm
90mm
100mm
110mm
120mm
130mm
140mm

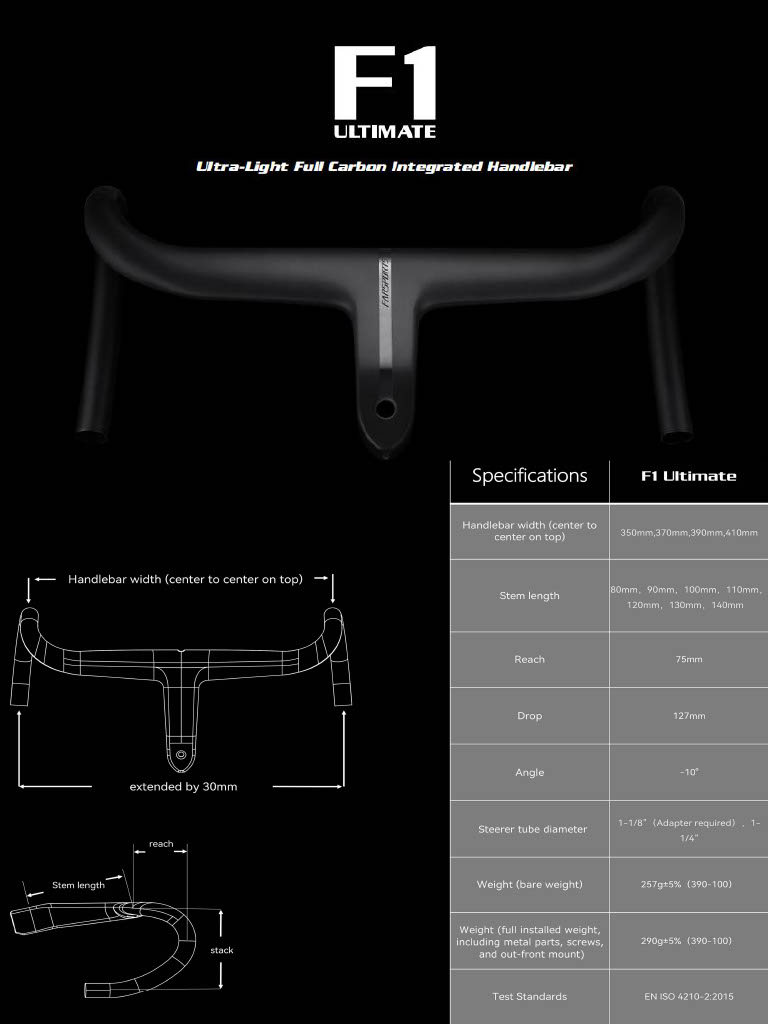

Geometry

Reach: 75mm
Drop: 127mm
Drop-bar flare: 30mm
Stem angle: -10°

Weight

Approximately 257g bare — 390mm × 100mm configuration
Approximately 290g fully installed — 390mm × 100mm configuration

Steerer Compatibility

1-1/8in
1-1/4in

Appropriate sleeves, headset components and/or frame-specific adapters may be required depending on the bicycle.

COMPATIBILITY MATTERS

An integrated cockpit needs to suit both the rider and the bicycle.

The handlebar width and stem length need to match the rider’s fit, while compatibility with the bike depends on its steerer, headset, spacers and internal cable-routing arrangement.

The F1 Ultimate is designed to work with many modern internally routed performance bikes when the appropriate frame-specific adapter and installation components are used.

If you are unsure whether the F1 Ultimate will fit your bike, speak to us before ordering. We can help you identify the appropriate cockpit size and compatibility requirements for your frame.

SUPPORTED HERE IN THE UK

Supplied by Coventry Bespoke Cycles with UK-based support before and after purchase.

Not sure which width, stem length or adapter arrangement is right for your bike? Speak to us before ordering and we’ll help you identify the appropriate F1 Ultimate configuration.

We can also support the cockpit with genuine Farsports hardware and installation-related components where available.
